| P6mm Station indoor led screen | |||
| Technical Specifications | |||
| LED Lamp Parameters | |||
| No. | Item | Specifications | |
| 1 | LED lamps | SMD 3528 | |
| LED Module Specifications | |||
| 1 | Pixel Pitch | 6mm | |
| 2 | Pixel Configuration | RGB (SMD 3 IN 1 ) | |
| 3 | Module Resolution | 32dots X 16dots | |
| 4 | Module Size | 192mm x 96mm | |
| LED Cabinet Specifications ( Standard Cabinet ) | |||
| 1 | Cabinet Size(WxH) | 960mm x 768mm | |
| 2 | Cabinet Resolution | 160x128 pixel dots | |
| 3 | Module Quanity | 40 PCS | |
| 4 | Cabinet Frame Material | black powder coated steel(Aluminum for option) | |
| 5 | Cabinet Weight | 33Kg | |
| Screen Parameters | |||
| 1 | Screen Resolution | 27,777 dots/㎡ | |
| 2 | Screen Brightness | 2000 nits | |
| 3 | Brightness Adjustment | manually | |
| 4 | Driving Method | constant current 1/8 | |
| 5 | View Angle | Horizontal 120° Vertical 120° | |
| 6 | Optimum Viewing Distance | ＞5 meters | |
| 7 | Refreshing Frequency | 1000 Hz | |
| 8 | Greyscale | 4096 grades | |
| 9 | Displaying Colors | 69 billion | |
| 10 | Input Voltage | Full range : 110-240 V AC , 50/60 Hz | |
| 11 | Power Consumption | Max.: 1200 W/㎡ Average: 400-800 W/㎡ | |
| 12 | Defects Rate | ≤0.00001 | |
| 13 | MTBF | >5000 hours | |
| 14 | Lifespan | ≥100,000 hours | |
| 15 | Protection Grade | IP43 | |
| 16 | Temperature-operating | ﹣20℃～+60℃ | |
| 17 | Humidity-operating | 10%～95% | |
| 18 | Operating System | Windows98/me/2000/NT/XP | |
| 19 | Video Processor | HDMI , HD-SDI , DVI , VGA , | |
| Packaging Details | |||
| 1 | Packing material | wooden box or flight case | |
| 2 | LED Screen weight | 45Kg/㎡ | |
| 3 | Packing way | one case holds one or two cabinets | |
| Features | |||
| 1 | Light & Convenient design | ||
| 2 | Super Brightness and Brightbess Adjustable by software | ||
| 3 | Energy Saving | ||
| 4 | Excellent Cooling Ability | ||
| 5 | High Definition and with video processor for better & ideal visibility | ||
| 6 | Convenient Installation & transportation | ||
| 7 | Application : for inside events /for rent /for leasing /leasable/background/stage/concert | ||

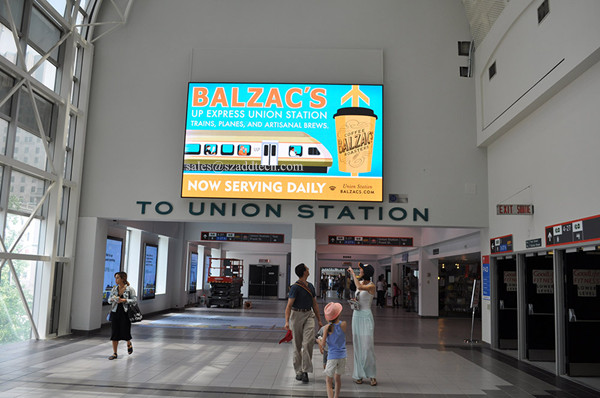

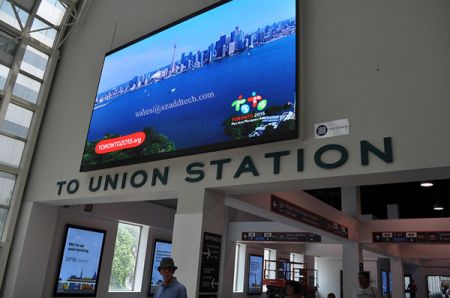

P6mm Station indoor led screen
