Products > Outdoor RGB LED Displays > > P10 HD RGB Full Color LED Display Screen

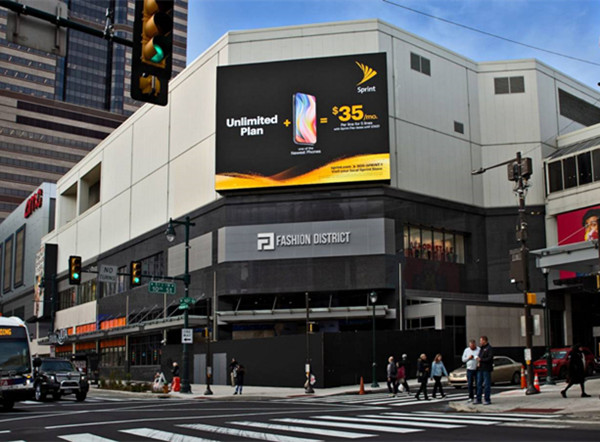

P10 HD  RGB Full Color LED Display Screen
P10 HD  RGB Full Color LED Display Screen
P10 HD  RGB Full Color LED Display Screen
P10 HD  RGB Full Color LED Display Screen
Product name : P10 HD RGB Full Color LED Display Screen
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
P10 HD  RGB Full Color LED Display Screen
                                                Technical Specifications
LED Lamp Parameters
No. Item Specifications
1 LED lamps DIP346 , Oval
2 Wavelength Red LEDs 620-630nm
Green LEDs 520-535nm
Blue LEDs 465-475nm
LED Module Specifications
1 Pixel Pitch 10mm
2 Pixel Configuration 1R1G1B
3 Module Resolution 16dots X 16dots
4 Module Size 160mm x 160mm
LED Cabinet Specifications ( Standard Cabinet )
1 Cabinet Size(WxH) 960mm x 960mm
2 Cabinet Resolution 96 x 96 pixel dots
3 Module Quanity 36 PCS
4 Cabinet Frame Material black powder coated steel
5 Cabinet Weight 46 Kg
Screen Parameters
1 Screen Resolution 10,000 dots/㎡
2 Screen Brightness 9000 nits
3 Brightness Adjustment manually or automatically
4 Driving Method constant current    1/4
5 View Angle Horizontal 120° Vertical 80°
6 Optimum Viewing Distance 5m to 200m
7 Refreshing Frequency 1500 Hz (Adjustable by Software )
8 Input Voltage AC220V/50Hz or AC110V/60Hz
9 Power Consumption Max.: 800 W/㎡    Average: 300-500 W/㎡
10 Defects Rate ≤0.00001
11 MTBF >5000 hours
12 Lifespan ≥100,000 hours
13 Protection Grade IP65
14 Temperature-operating ﹣40℃~+60℃
15 Humidity-operating 10%~95%
16 Operating System  Windows98/me/2000/NT/XP
Packaging Details
1 packing material  wooden box or flight case
2 screen weight 50Kg/㎡
3 packing way  one case holds one or two cabinets
