Product name : P20 Stadium Football / Soccer Perimeter Display

Item : AT-Sports-Outdoor-PH-20mm

Enlarge Image

Back

←[Previous Product]

Details:

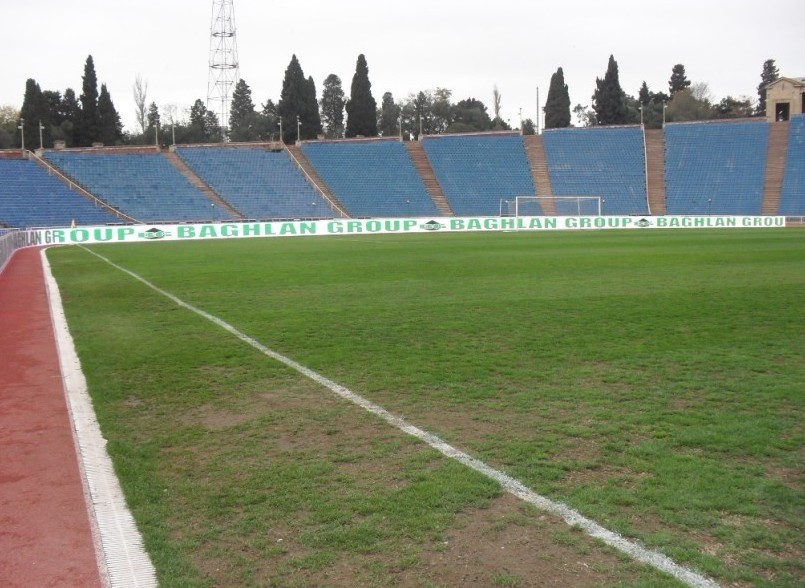

P20 Stadium Football / Soccer Perimeter Display
Technical Specifications
LED Lamp Parameters
No.	Item	Specifications
1	LED lamps	DIP546 , Oval
2	Wavelength	Red LEDs	620-630nm
		Green LEDs	520-535nm
		Blue LEDs	465-475nm
LED Module Specifications
1	Pixel Pitch	20mm
2	Pixel Configuration	2R1G1B
3	Module Resolution	8dots x 16dots
4	Module Size	160mm x 320mm
LED Cabinet Specifications ( Standard Cabinet )
1	Cabinet Size(WXHXD)	1280mm x 960mm x 220mm
2	Cabinet Resolution	64dots x 48 dots
3	Module Quanity	24 pcs
4	Cabinet Frame Material	black powder coated steel
5	Cabinet Weight	73 KG
Screen Parameters
1	Screen Resolution	2500 dots/㎡
2	Screen Brightness	6000 nits
3	Brightness Adjustment	manually or automatically
4	Driving Method	constant current static
5	View Angle	Horizontal 120° ; Vertical 60°
6	Optimum Viewing Distance	20m to 300m
7	Refreshing Frequency	≥300 Hz
8	Input Voltage	Full range : 110--240 V AC , 50/60 Hz
9	Power Consumption	Max.: 650 Watts /㎡ Average: 300-500 Watts /㎡
10	Defects Rate	≤0.00001
11	MTBF	>5000 hours
12	Lifespan	≥100,000 hours
13	Protection Grade	IP65
14	Temperature-operating	﹣40℃～+60℃
15	Humidity-operating	10%～95%
16	Operating System	Windows98/me/2000/NT/XP/ Windows 7
Packaging Details
1	packing material	wooden box or flight case
2	screen weight	60 KG / ㎡
3	packing way	one case holds one or two cabinets
