Products > Custom-built LED Products > > Double Sides RGB LED Sign

Product name : Double Sides RGB LED Sign

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

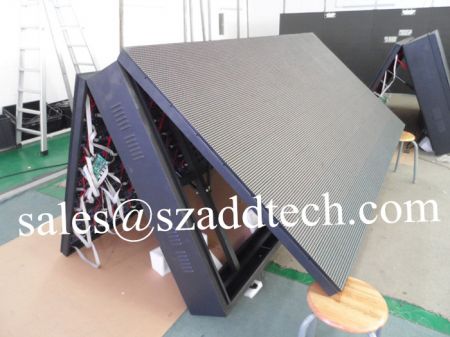

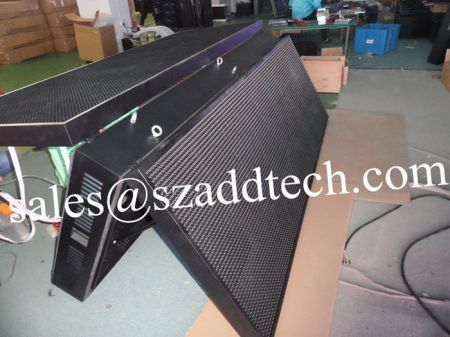

Double Sides RGB LED Sign
Specifications
No.	Item	Contents
1	LED Display Dimension	Each side : 96cm (Height) x 192cm (Width)
2	Pixel Pitch	12 mm
3	Pixel Configuration	2R1G1B
4	LED Module Size	192 mm x 192 mm
5	Module Resolution	16 x 16 dots
6	Cabinet Frame Material	Coated Steel
7	LED Display Weight	190 kg
8	Display Pixel Resolution	80 x 160 dots
9	Display Screen Brightness	7500 nits
10	Brightness Adjustment	Manually by software
11	Driving Method	constant current / 1/4
12	View Angle	Horizontal: 120° Vertical: 60°
13	Optimum Viewing Distance	Beyond 10 meters
14	Refreshing Frequency	1000 Hz
15	Greyscale	256 grades
16	Displaying Colors	16 million
17	Input Voltage	Full range : 110-240 V AC , 50/60 Hz
18	Power Consumption	Max.: 1000 W/㎡ Average: 450-700 W/㎡
19	Defects Rate	≤0.00001
20	MTBF	>5000 hours
21	Lifespan	≥100,000 hours
22	Protection Grade	IP65
23	Temperature-operating	﹣20℃～+60℃
24	Humidity-operating	10%～95%
25	Operating System	Windows98/me/2000/NT/XP
26	Programming Software	LEDCenterM
27	Packaging	Wooden Case
Features
1	Double sides showing display contents
2	User-friendly Programming Software
3	Showing Contents : text messages , graphics , videos , etc.
4	Showing Programes Scheduled Availability
5	Same or different displaying contents on the two sides both available
6	Convenient Installation
7	Application : outdoor advertising , billboard , etc.
