| Indoor LED Display Screen (P3mm High Definition ) | |||
| Technical Specifications | |||
| LED Lamp Parameters | |||
| No. | Item | Specifications | |
| 1 | LED lamps | SMD 2121 | |
| LED Module Specifications | |||
| 1 | Pixel Pitch | 3mm | |
| 2 | Pixel Configuration | RGB (SMD 3 IN 1 ) | |
| 3 | Module Resolution | 64 x 64 pixel dots | |
| 4 | Module Size | 192mm x 192mm | |
| LED Cabinet Specifications ( Standard Cabinet ) | |||
| 1 | Cabinet Size(WxH) | 960mm x 960mm | |
| 2 | Cabinet Resolution | 320 x 320 pixel dots | |
| 3 | Module Quanity | 25 PCS | |
| 4 | Cabinet Frame Material | black powder coated steel(Aluminum for option) | |
| 5 | Cabinet Weight | 23 Kg | |
| LED Screen Parameters | |||
| 1 | LED Screen Resolution | 111,111 dots/㎡ | |
| 2 | LED Screen Brightness | 1000 nits | |
| 3 | Brightness Adjustment | manually by software | |
| 4 | Driving Method | constant current 1/32 | |
| 5 | View Angle | Horizontal 120° Vertical 120° | |
| 6 | Optimum Viewing Distance | ＞1 meters | |
| 7 | Refreshing Frequency | 1920 Hz | |
| 8 | Input Voltage | Full range : 110-240 V AC , 50/60 Hz | |
| 9 | Power Consumption | Max.: 2000 W/㎡ Average: 400-700 W/㎡ | |
| 10 | Defects Rate | ≤0.00001 | |
| 11 | MTBF | >5000 hours | |
| 12 | Lifespan | ≥100,000 hours | |
| 13 | Protection Grade | IP43 | |
| 14 | Temperature-operating | ﹣20℃～+60℃ | |
| 15 | Humidity-operating | 10%～95% | |
| 16 | Operating System | Windows98/me/2000/NT/XP | |
| 17 | Video Processor | HDMI , HD-SDI , DVI , VGA , | |

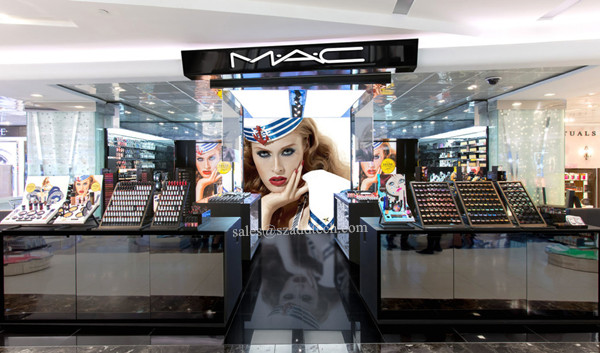

P3mm Indoor LED Screen
