LED Information Board

Products

LED Information Board

  • Details

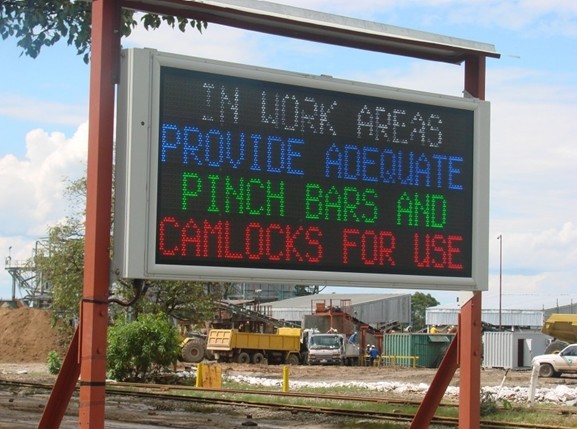

                                                            LED Information Board
                                     Specifications
No. Item  Contents
1 LED Display Dimension 102.4cm (Height) x 256cm (Width)
2 Pixel Pitch 16 mm
3 Pixel Configuration 2R1G1B
4 LED Module Size 128mm x 256 mm
5 Module Resolution  8 x 16 dots
6 Cabinet Frame Material Coated Steel
7 LED Display Weight 260 kg
8 Display Pixel Resolution 64 x 160 dots
9 Display Screen Brightness 9000 nits
10 Brightness Adjustment Automatically & Manually by software
11 Driving Method constant current / static scanning
12 View Angle Horizontal: 120°    Vertical: 60°
13 Optimum Viewing Distance Beyond 15 meters
14 Refreshing Frequency 1000 Hz
15 Greyscale 256 grades
16 Displaying Colors  16 million
17 Input Voltage Full range : 110-240 V AC , 50/60 Hz
18 Power Consumption Max.: 1500 W/㎡    Average: 600-800 W/㎡
19 Defects Rate ≤0.00001
20 MTBF >5000 hours
21 Lifespan ≥100,000 hours
22 Protection Grade IP65
23 Temperature-operating ﹣20℃~+60℃
24 Humidity-operating 10%~95%
25 Operating System  Windows98/me/2000/NT/XP
26 Programming Software  LEDCenterM
27 Packaging Wooden Case
                                         Features
1 Full color RGB advertising & attractive showing contents
2 User-friendly Programming Software
3 Showing Contents : text messages , graphics , videos , etc.
4 Showing Programes Scheduled Availability
5 Durable , simple maintenance ,and long lifetime
6 Convenient Installation
7 Application : outdoor advertising , billboard , etc.
