Products > Electronic LED Signs > > P10mm Outdoor RGB Full Color LED Display Screen Panel

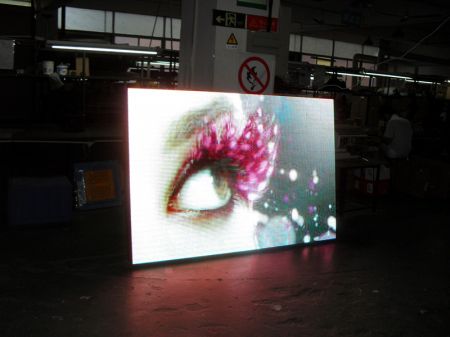

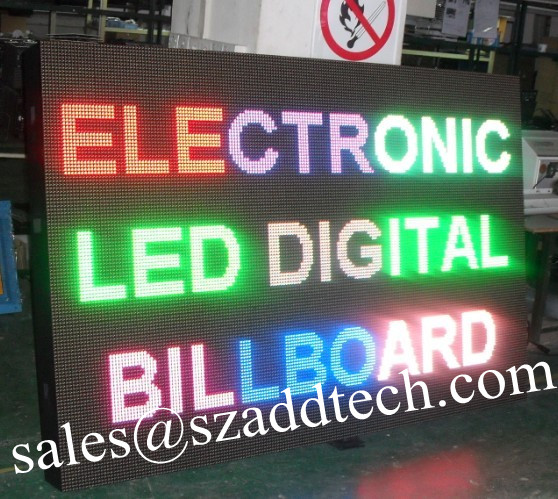

P10mm Outdoor RGB Full Color LED Display Screen Panel
P10mm Outdoor RGB Full Color LED Display Screen Panel
P10mm Outdoor RGB Full Color LED Display Screen Panel
P10mm Outdoor RGB Full Color LED Display Screen Panel
Product name : P10mm Outdoor RGB Full Color LED Display Screen Panel
Item : AT-RGB-Outdoor-PH-10mm
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
Specifications & Features
Pixel Pitch : 10mm
LED Lamp : Oval DIP346 Super Brightness
Pixel Configuration : 1R1G1B
LED Chip : red from Epistar ; green & blue from Silan
LED Screen Panel Dimension : 1.28 meters high by 1.92 meters wide (4'2" by 6'4")
Pixel Resolution : 128 by 192 = 24,576 pixel dots
Brightness of LED Screen : 8500 nits (Maximum)
Viewing Angle : Horizontal: 120° ; Vertical: 60°
Optimum Viewing Distance : 5 meters to 150 meters
Driving Current : Constant Current
Scanning Mode : 1/4
Showing Color : RGB Full colors
Showing Contents : Text Messages , Graphics , Photos , Videos
Communication : USB Flash Disk , Ethernet (TCP/IP) , and Wireless Router
Working Temperature : - 20℃ to + 60℃
Relative Humidity : 10% --90%
Ingress Protection : IP65
Durability : 100,000 hours
Input Power : 110--240 V AC , 50/60 Hz
Power Consumption : 500-1000 watts (Maximum :2400 watts)
Maintenance Way : Back Service
Packaging : Wooden Case
LED Panel Weight : 147 Kg
