Product name : Stadium Perimeter Display Panel

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

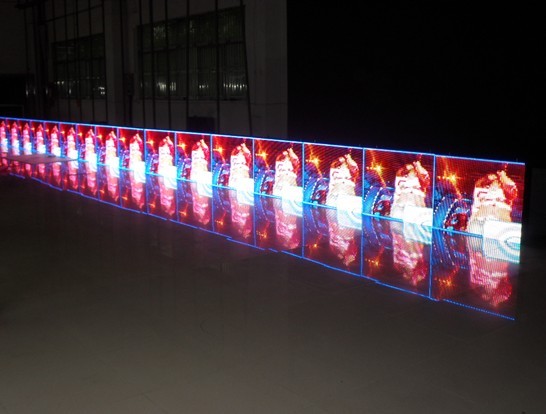

Stadium Perimeter Display Panel
Specifications
No.	Item	Contents
1	LED Display Dimension	96cm (Height) x customised width
2	Pixel Pitch	20 mm
3	Pixel Configuration	2R1G1B
4	LED Module Size	160mm x 320 mm
5	Module Resolution	8 x 16 dots
6	Cabinet Frame Material	Coated Steel/ Aluminum
7	Standard Cabinet Size	960mm (High) x 1280mm (Wide) x 23mm (Deep)
8	Standard Cabinet Pixel Dots	48 x 64
9	Display Screen Brightness	5500 nits
10	Brightness Adjustment	Automatically or Manually by software
11	Driving Method	constant current / static
12	View Angle	Horizontal: 120° Vertical: 60°
13	Optimum Viewing Distance	Beyond 20 meters
14	Refreshing Frequency	1500 Hz
15	Greyscale	4096 grades
16	Displaying Colors	69 billion
17	Input Voltage	Full range : 110-240 V AC , 50/60 Hz
18	Power Consumption	Max.: 650 W/㎡ Average: 200-400 W/㎡
19	Defects Rate	≤0.00001
20	MTBF	>5000 hours
21	Lifespan	≥100,000 hours
22	Protection Grade	IP65
23	Temperature-operating	﹣20℃～+60℃
24	Humidity-operating	10%～95%
25	Operating System	Windows98/me/2000/NT/XP
26	Programming Software	LINSN LED Studio
27	Packaging	Wooden Case / Flight Case
Features
1	Continuous & Repeating Advertisement, just controlled by one computer
2	Digital & Intellectualized ! No need to change the advertising contents by labours .
3	Showing Contents : text messages , graphics , videos , etc.
4	Showing Programes Scheduled Availability & Plenty of actions for option
5	Durable , simple maintenance ,and long lifetime
6	Convenient Installation/ Transportation/Maintenance
7	Application : Stadium / Arena / Sports / Football Field / Soccer Field / Basketball Field, etc .
