| LED Trailer Sign ( P10mm HD RGB Model ) | |||
| Specifications | |||
| No. | Item | Contents | |
| 1 | LED Display Dimension | 96cm (Height) x 224cm (Width) | |
| 2 | Pixel Pitch | 10 mm | |
| 3 | Pixel Configuration | 1R1G1B | |
| 4 | LED Module Size | 160mm x 160 mm | |
| 5 | Module Resolution | 16 x 16 dots | |
| 6 | Cabinet Frame Material | Coated Steel | |
| 7 | LED Display Weight | 135 kg | |
| 8 | Display Pixel Resolution | 96 x 224 dots | |
| 9 | Display Screen Brightness | 8500 nits | |
| 10 | Brightness Adjustment | Manually by software | |
| 11 | Driving Method | constant current / 1/4 | |
| 12 | View Angle | Horizontal: 120° Vertical: 60° | |
| 13 | Optimum Viewing Distance | Beyond 8 meters | |
| 14 | Refreshing Frequency | 1000 Hz | |
| 15 | Greyscale | 256 grades | |
| 16 | Displaying Colors | 16 million | |
| 17 | Input Voltage | Full range : 110-240 V AC , 50/60 Hz | |
| 18 | Power Consumption | Max.: 1200 W/㎡ Average: 500-800 W/㎡ | |
| 19 | Defects Rate | ≤0.00001 | |
| 20 | MTBF | >5000 hours | |
| 21 | Lifespan | ≥100,000 hours | |
| 22 | Protection Grade | IP65 | |
| 23 | Temperature-operating | ﹣20℃～+60℃ | |
| 24 | Humidity-operating | 10%～95% | |
| 25 | Operating System | Windows98/me/2000/NT/XP | |
| 26 | Programming Software | LEDCenterM | |
| 27 | Packaging | Wooden Case | |
| Features | |||
| 1 | Mobile Advertising | ||
| 2 | User-friendly Programming Software | ||
| 3 | Showing Contents : text messages , graphics , videos , etc. | ||
| 4 | Showing Programes Scheduled Availability | ||
| 5 | Durable , simple maintenance ,and long lifetime | ||
| 6 | Convenient Installation | ||
| 7 | Application : outdoor advertising , billboard , movavle events advertising , etc. | ||

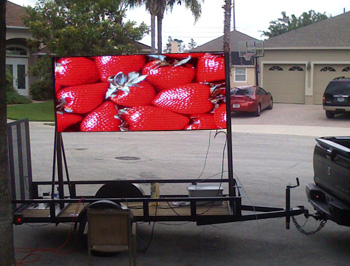

LED Trailer Sign
