Products > Custom-built LED Products > > Truck LED Display Screen (P10mm HD RGB Model )

Product name : Truck LED Display Screen (P10mm HD RGB Model )

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

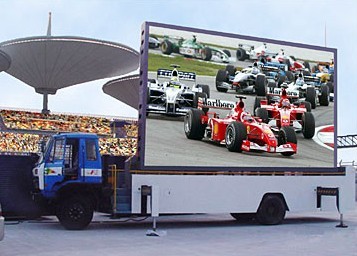

Truck LED Display Screen (P10mm HD RGB Model )
Specifications
No.	Item	Contents
1	LED Display Screen Dimension	288cm (Height) x 384cm (Width)
2	Pixel Pitch	10 mm
3	Pixel Configuration	1R1G1B
4	LED Module Size	160 mm x 160 mm
5	Unit Cabinet Size	960 mm x 960 mm x 180 mm
6	Cabinet Frame Material	Coated Steel
7	Unit Cabinet Weight	55 kg
8	Display Screen Resolution	288 x 384 dots
9	Screen Brightness	8000 nits
10	Brightness Adjustment	Automatically & Manually by software
11	Driving Method	constant current / 1/4 scanning
12	View Angle	Horizontal: 120° Vertical: 60°
13	Optimum Viewing Distance	Beyond 5 meters
14	Refreshing Frequency	1500 Hz
15	Greyscale	4096 grades
16	Displaying Colors	69 billion
17	Input Voltage	Full range : 110-240 V AC , 50/60 Hz
18	Power Consumption	Max.: 1200 W/㎡ Average: 500-800 W/㎡
19	Defects Rate	≤0.00001
20	MTBF	>5000 hours
21	Lifespan	≥100,000 hours
22	Protection Grade	IP65
23	Temperature-operating	﹣20℃～+60℃
24	Humidity-operating	10%～95%
25	Operating System	Windows98/me/2000/NT/XP
26	Programming Software	LINSN LED Studio
27	Packaging	Wooden Case / Flight Case
Features
1	High Definition & Perfect Visibility
2	Moveable Advertising
3	Abundant Displaying Contents : text messages , graphics , animations , videos , live videos ,etc.
4	Super Brightness & Brightness Adjustable
5	Durable , simple maintenance ,and long lifetime
6	Convenient Installation & transportation
7	Application : for outside events /for rent /for leasing /leasable/background/stage/concert
